Circuit board diagnostics for Harvia FC/XW/XE heaters
These instructions are only intended for the electrician in charge of the electrical installation! All service operations must be done by professional maintenance personnel.
Page content
- 400V 3N~ 3-phase installation and diagnostics
- 230V 1N~ 1-phase installation and diagnostics
- E9 error message or Power unit communication error
- Control for electric heating
- How to identify a circuit board
- How to access the circuit board
- Related

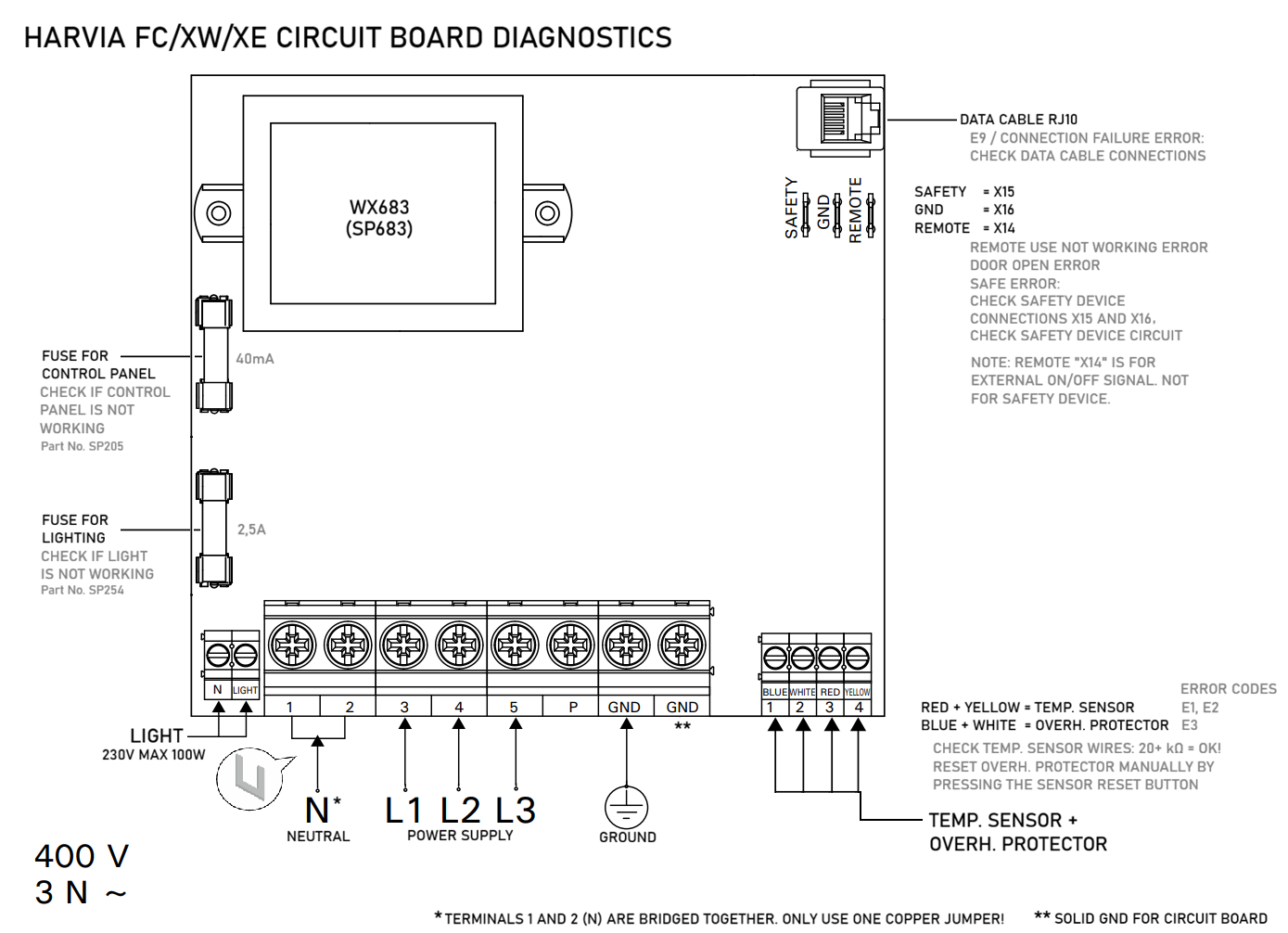

400V 3N~ 3-phase installation

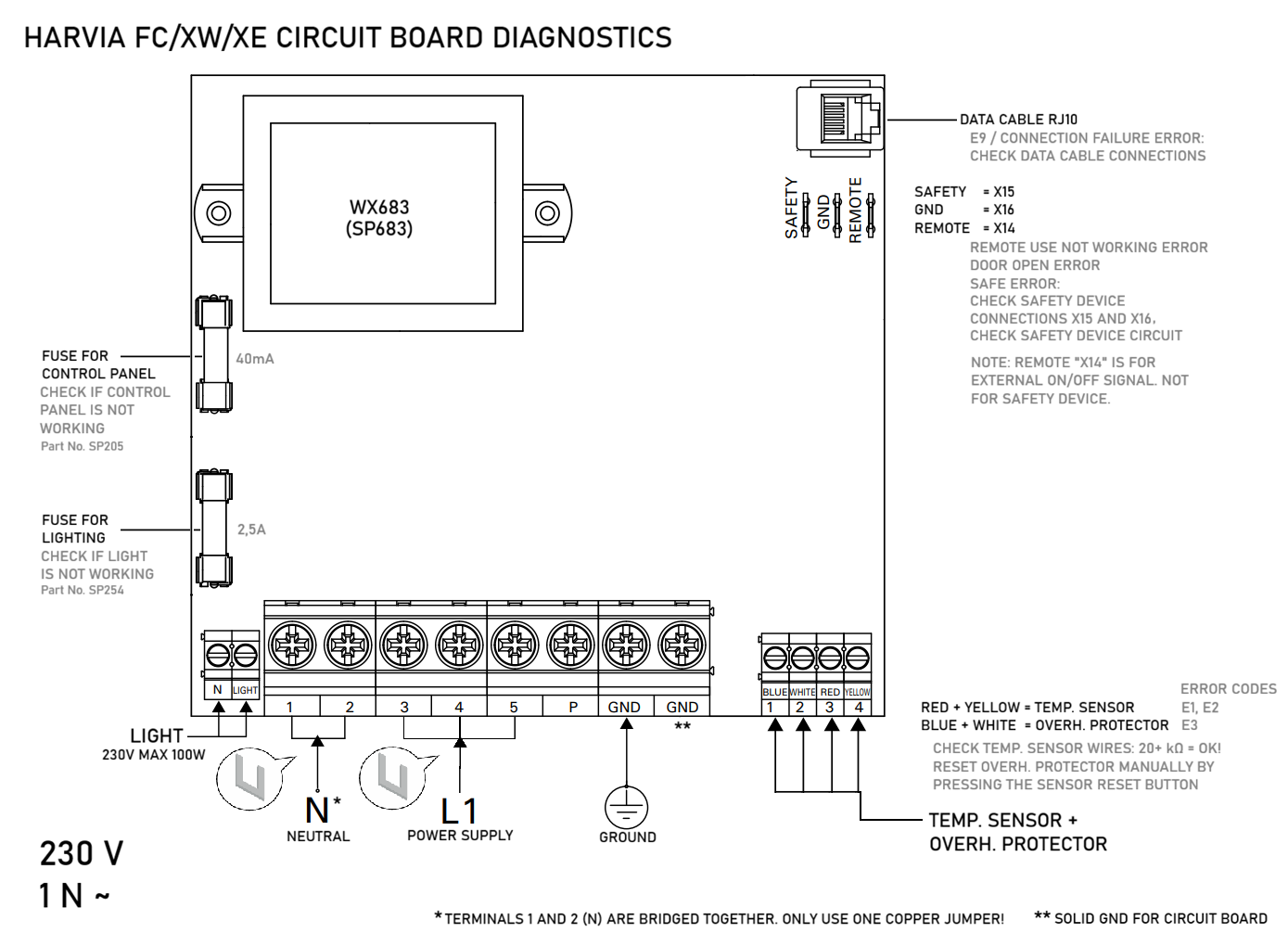

230V 1N~ 1-phase installation

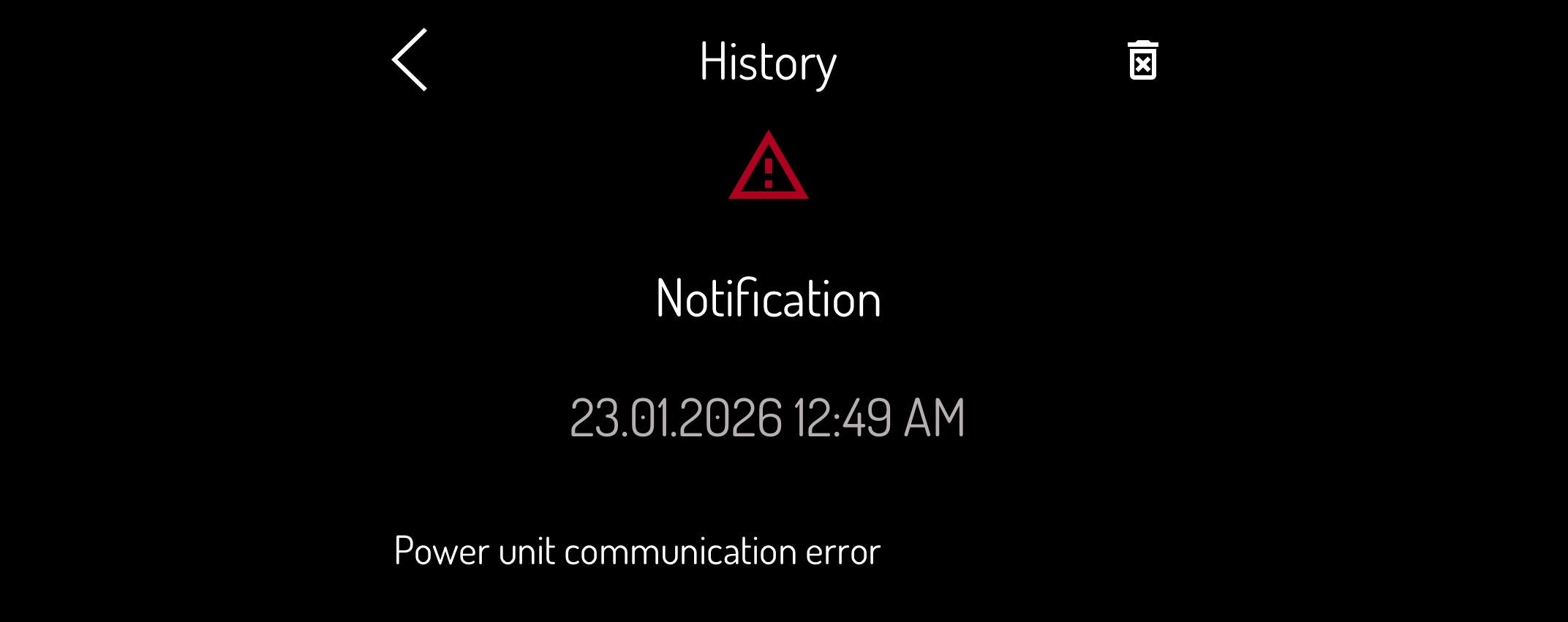

Error message E9 or Power unit communication error
Error message E9 or Power unit communication error indicates a critical connection error in the system.
Possible causes and solutions
- Loose or broken data cable between the control panel and circuit board.
- Check data cable and connections.
- Circuit board malfunction.
- Check circuit board and wires. Make sure all connections on the terminal block are tight.
Note: Error message E9 or Power unit communication error is not caused by the following reasons
- WiFi connection interruption.
- Loss of connection to the safety device.
- Faulty temperature sensor or overheat limiter.
- Broken heating element.

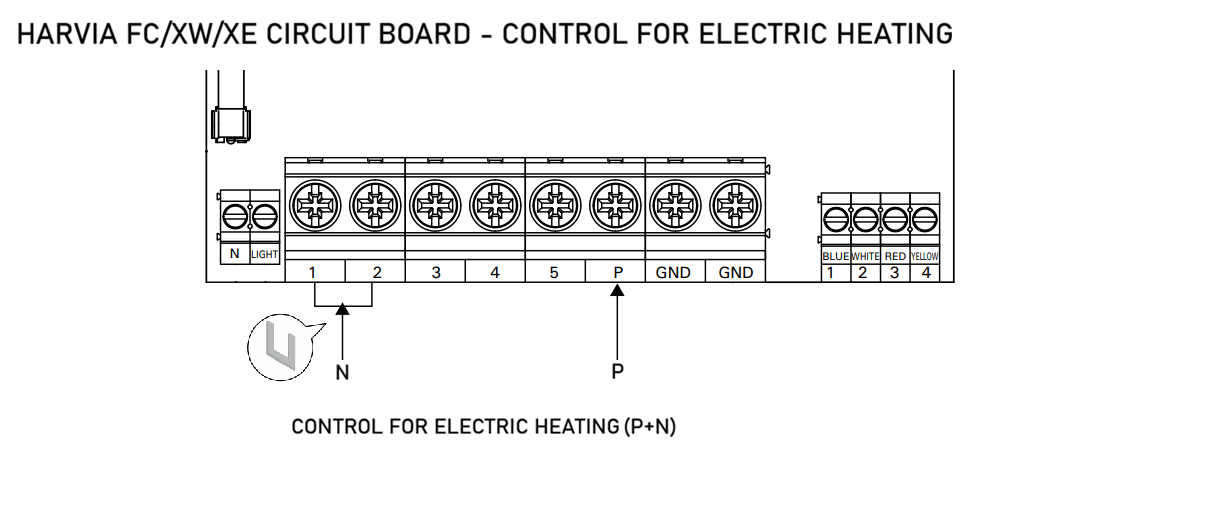

Control for electric heating (P)
In addition to supply connectors, the heaters are equipped with a connector (P), which makes the control of the electric heating possible. Voltage control is transmitted from the heater when it is switched on. The control cable for electrical heating is brought directly into the junction box of the heater, and from there to the terminal block of the heater along a rubber cable with the same cross-section area as that of the connecting cable.

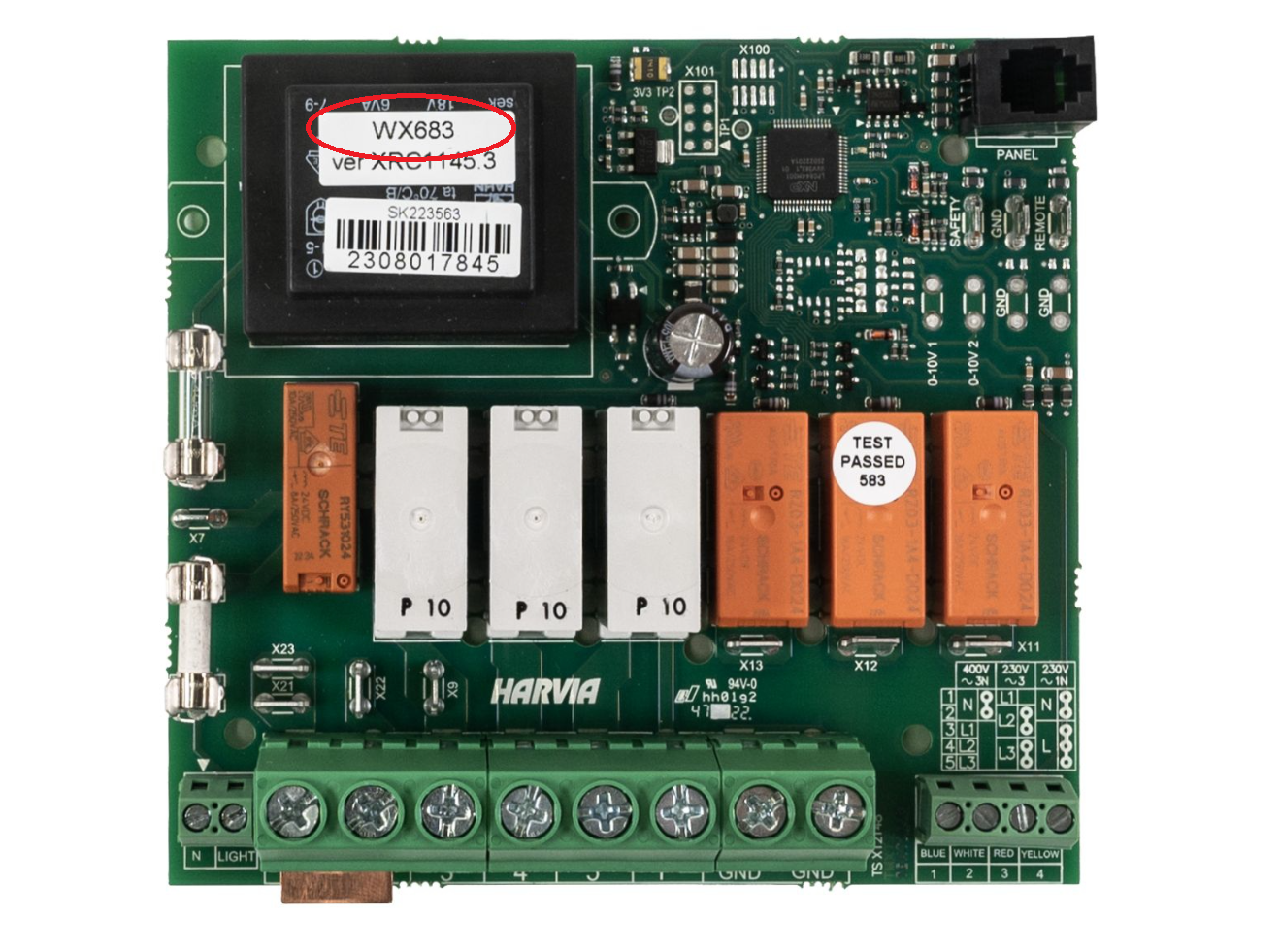

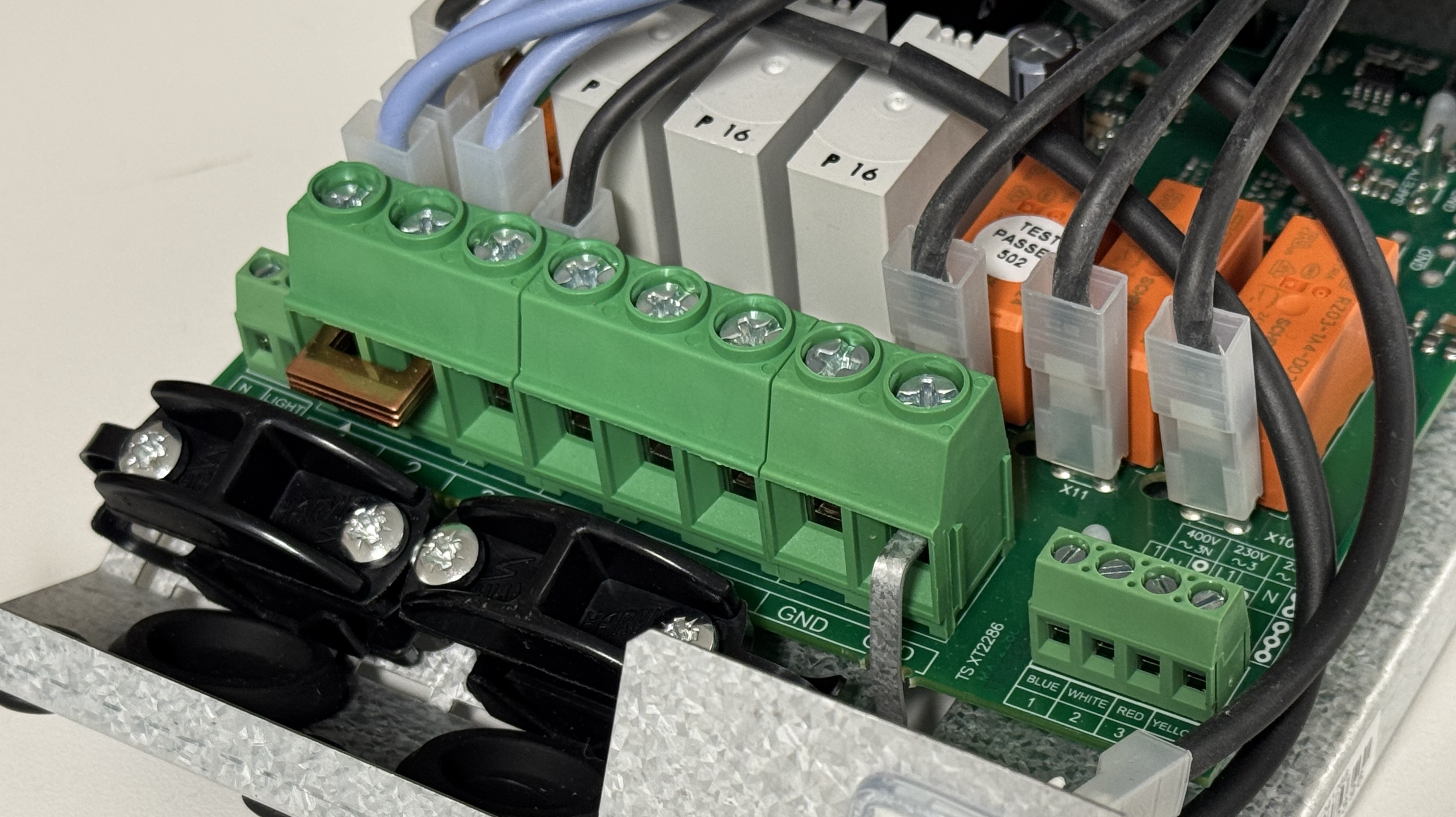

How to identify a circuit board
The circuit board model is marked on the sticker with the letters WX___.
Original manufacturer part number: WX683
Spare part number: SP683

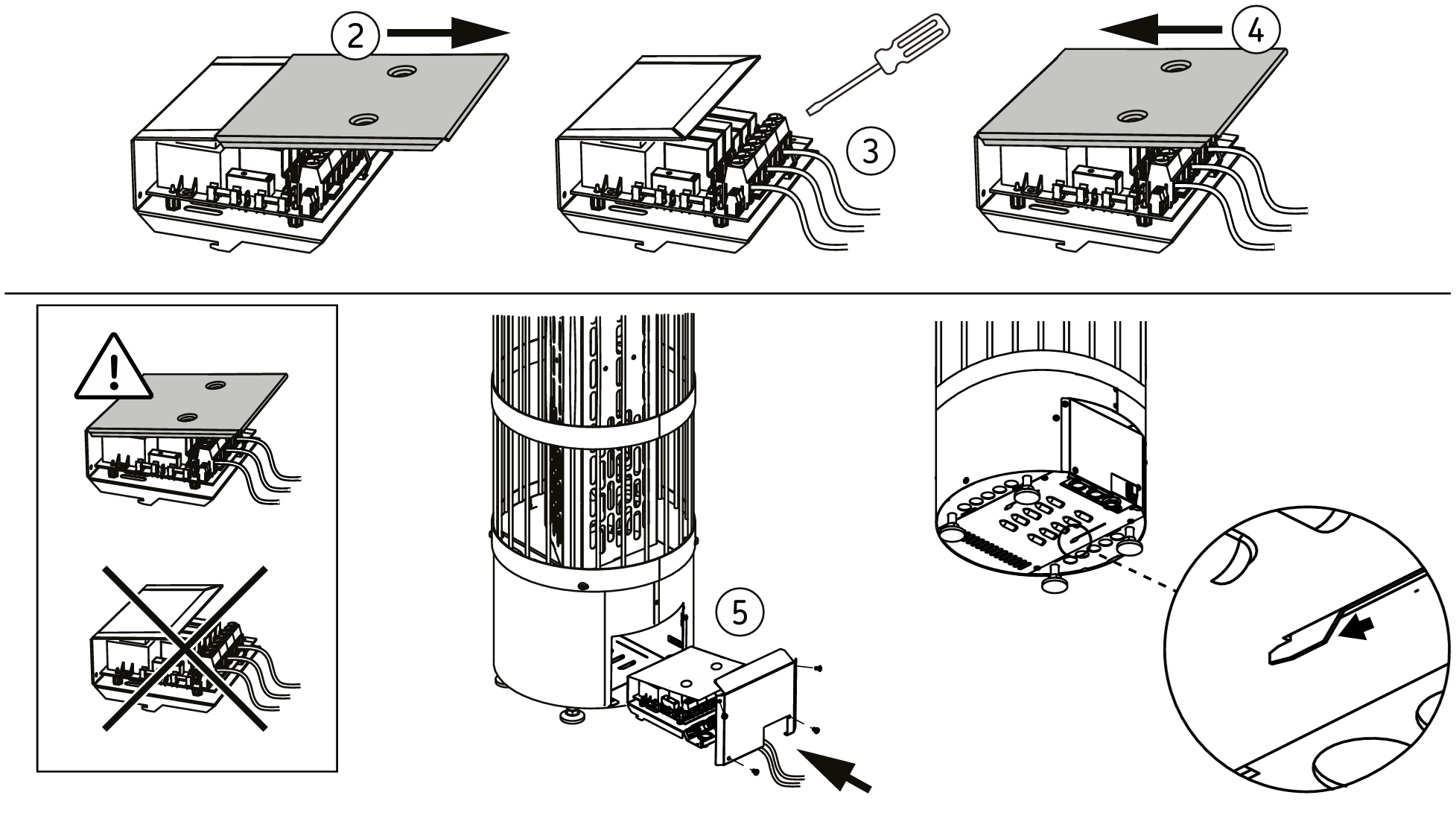

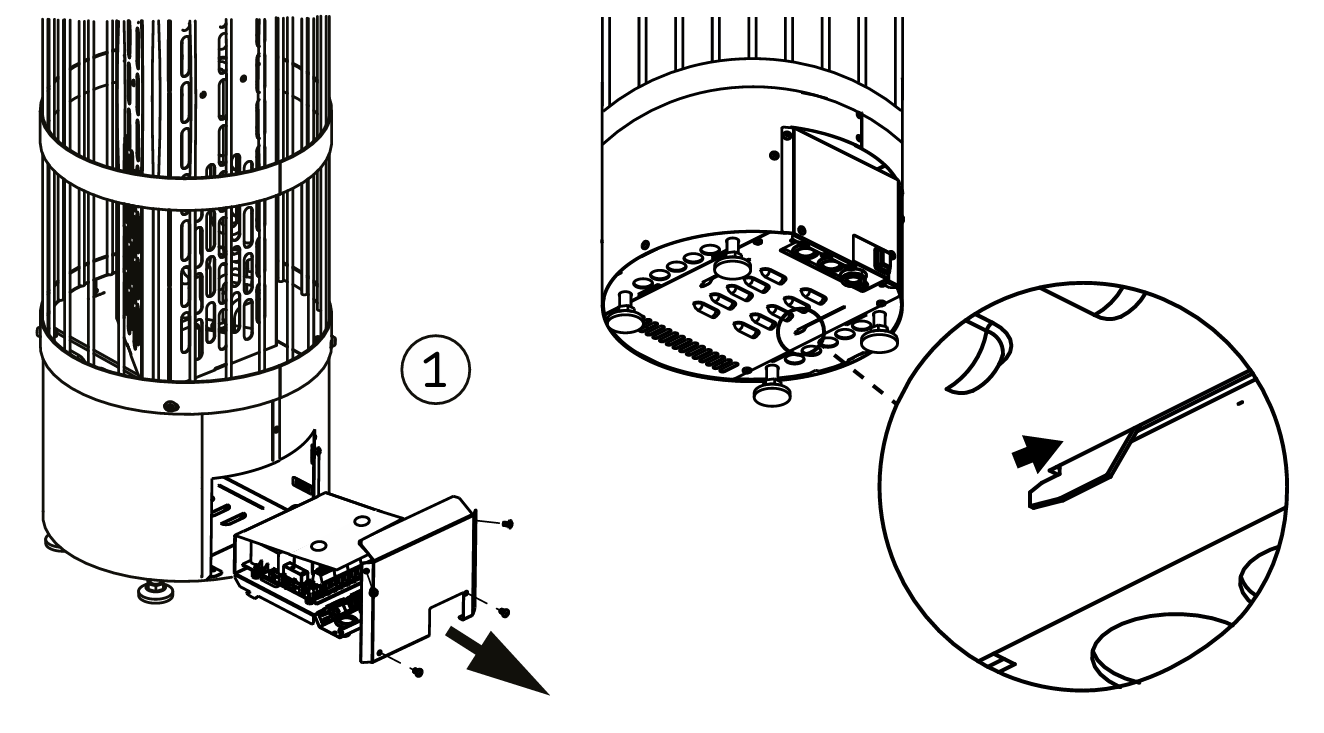

How to access the circuit board
Note: In certain models, the circuit board bracket may be screwed to the bottom of the heater
Related
- Need help identifying a heater model?
- Find circuit boards, power units and other spare parts for pillar heaters
NOTE
These instructions are only intended for the electrician in charge of the electrical installation! The heater may only be connected to the electrical network in accordance with the current regulations by an authorized, professional electrician.
All service operations must be done by professional maintenance personnel.
