All service operations must be done by professional maintenance personnel.
Page content

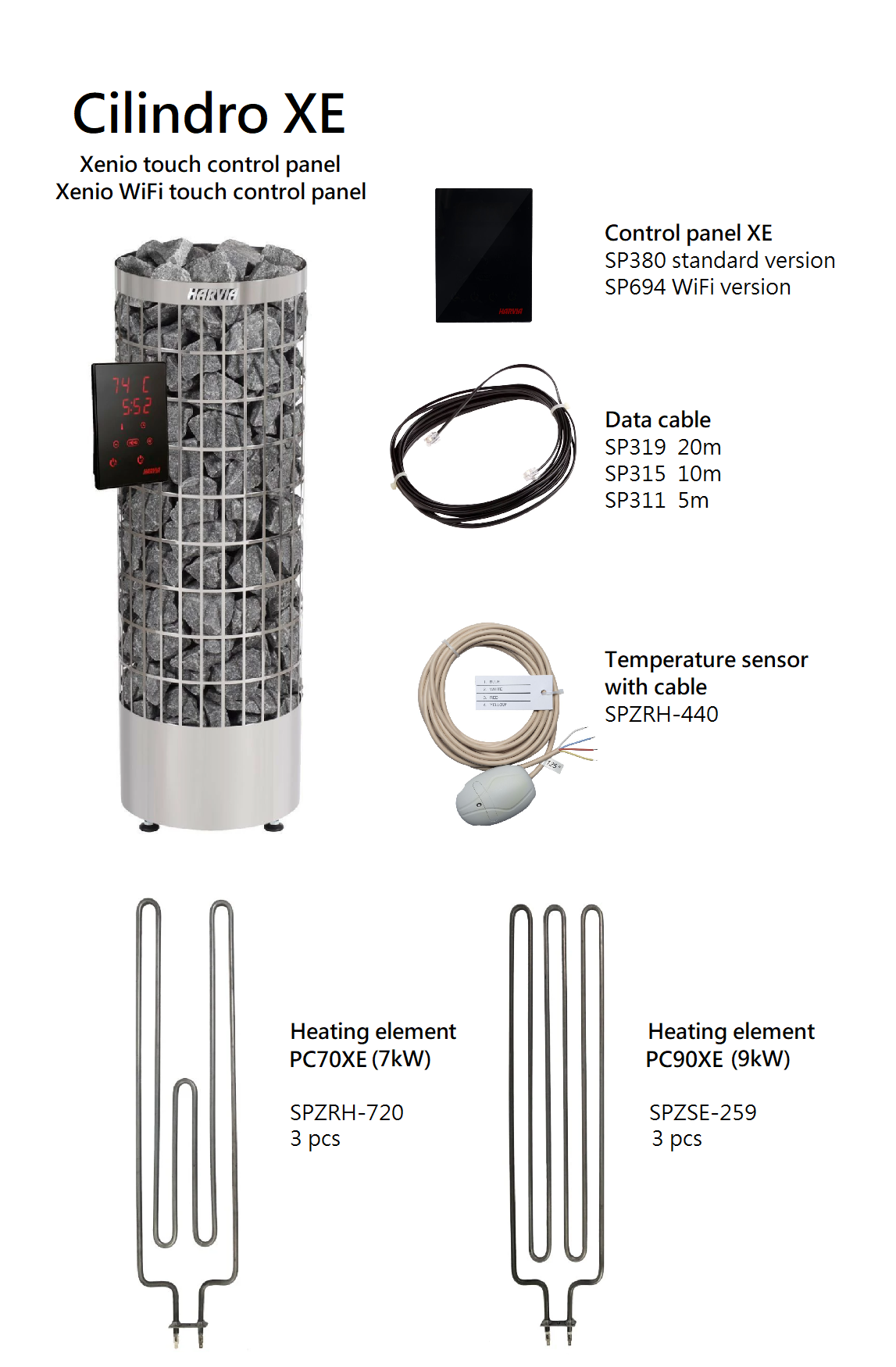

Spare parts for Cilindro XE and XW
General spare parts
Compatible heater models: PC70XE / PC70XW / PO70XE / PO70XW / PC90XE / PC90XW / E models
Heater power options: 7kW / 9kW

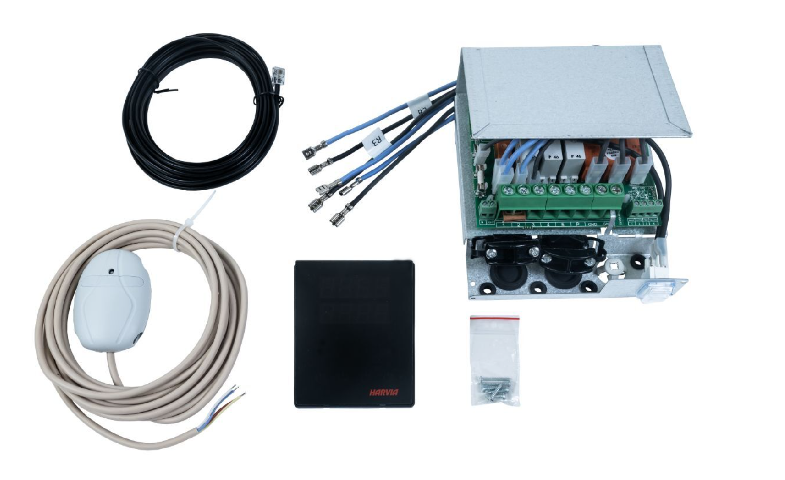

Complete power unit for XE
Part number: SPZSC-184
- Power unit (circuit board SP683) and cables
- Xenio control panel SP380
- Data cable SP311
- Temperature sensor with cable SPZRH-440 and screws
Compatible heater models: PC70XE / PC70XW / PO70XE / PO70XW / PC90XE / PC90XW / PC110XE / PO110XW
Heater power options: 7kW / 9kW / 11kW

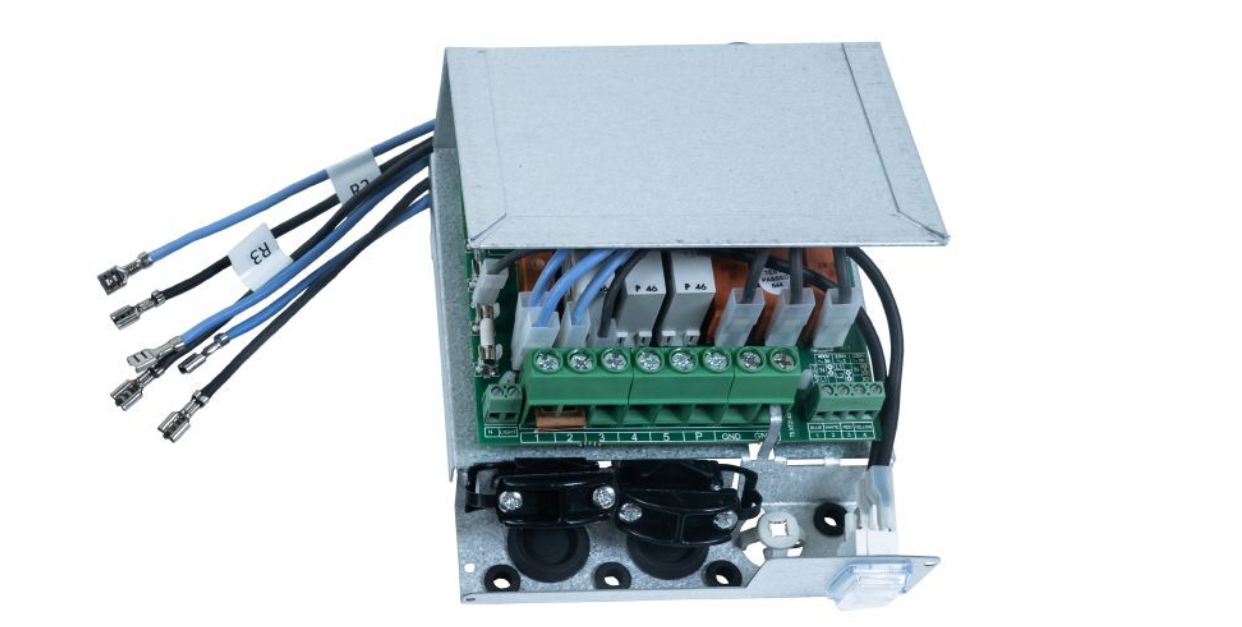

Power unit for XE
Part number: ZSC-184PR
- Power unit (circuit board SP683) and cables
Compatible heater models: PC70XE / PC70XW / PO70XE / PO70XW / PC90XE / PC90XW / PC110XE / PO110XW
Heater power options: 7kW / 9kW / 11kW

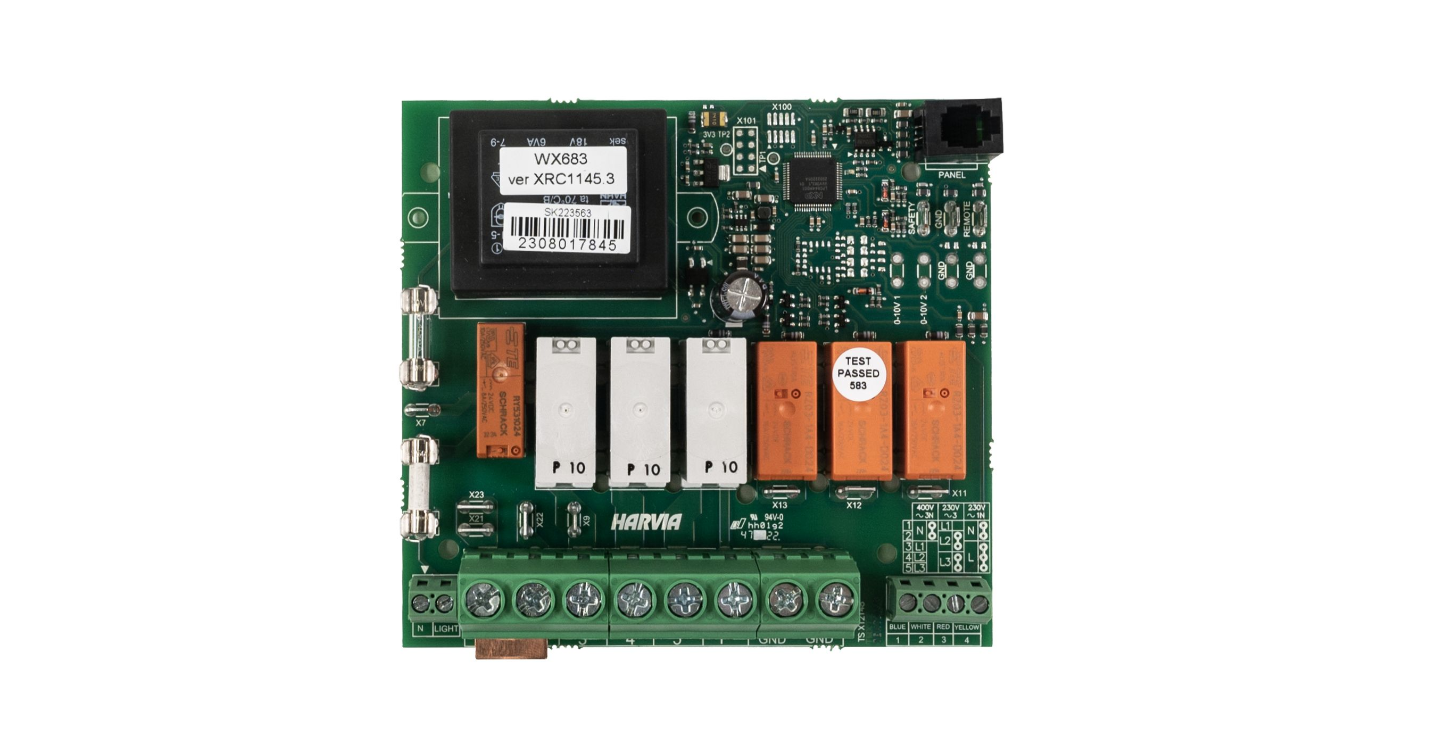

Circuit board for XE
Part number: SP683
- Circuit board SP683 without cables
Compatible heater models: PC70XE / PC70XW / PO70XE / PO70XW / PC90XE / PC90XW / PC110XE / PO110XW
Heater power options: 7kW / 9kW / 11kW

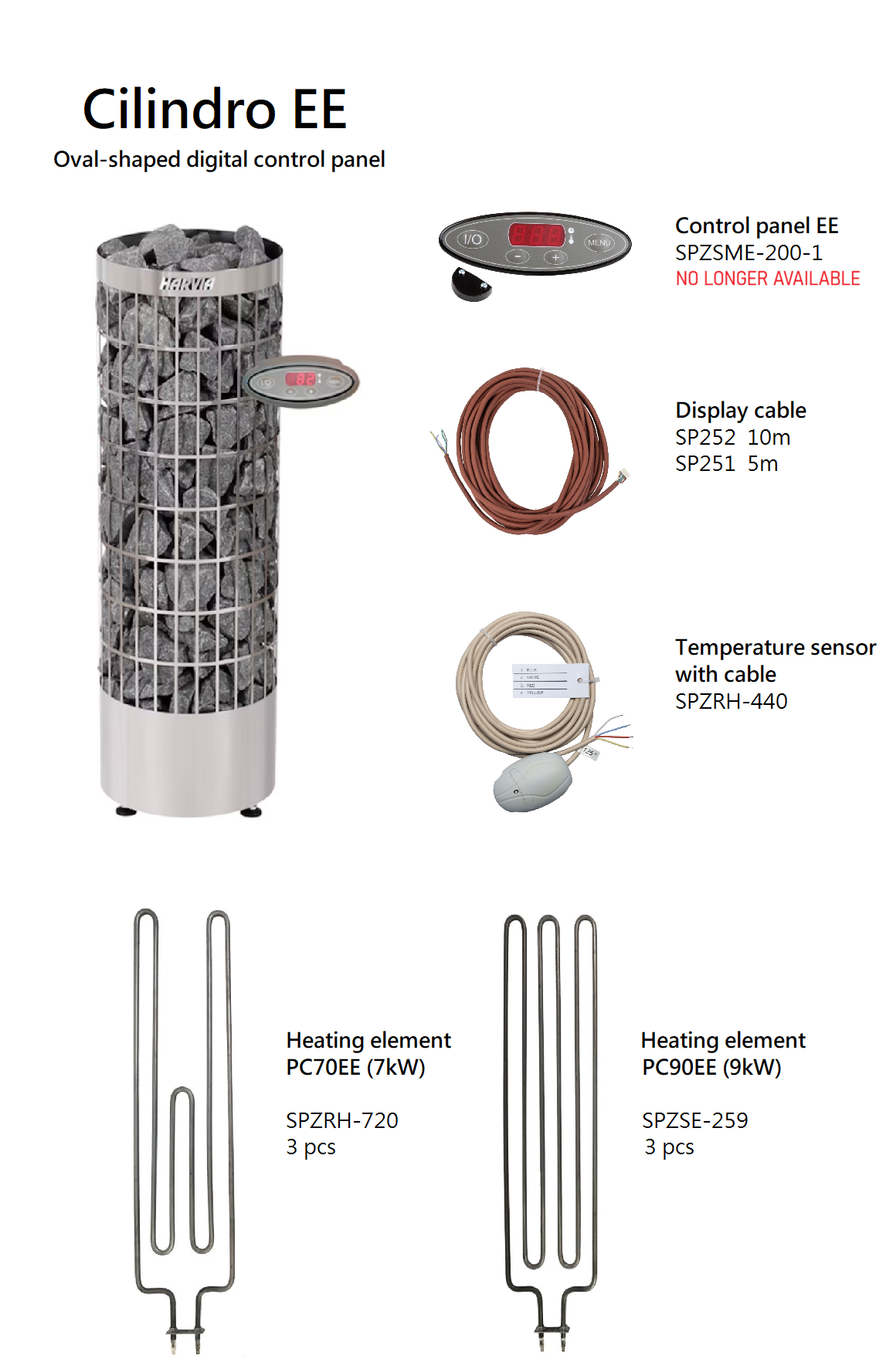

Spare parts for Cilindro EE
General spare parts
Heater models: PC70EE / PC70VEE / PC70HEE / PC70VHEE / PC90EE / PC90VEE / PC90HEE / PC90VHEE
Heater power options: 7kW / 9kW
